Sbt setup

Once you have defined your Data Model, your sbt project needs to be set up to use Molecule.

MoleculePlugin

The sbt MoleculePlugin generates Molecule boilerplate code when you compile your project.

Add the latest version of the plugin in project/buildinfo.sbt:

addSbtPlugin("org.scalamolecule" % "sbt-molecule" % "1.0.2")

And add it to the project build.sbt file

lazy val yourProject = project.in(file("app"))
    .enablePlugins(MoleculePlugin)

In ScalaJS projects, enable the plugin in the shared project:

lazy val shared = crossProject(JSPlatform, JVMPlatform)
  .crossType(CrossType.Pure)
  .in(file("shared"))
  .enablePlugins(MoleculePlugin)

Dependencies

These will depend on which specific Datomic database system that you will use. You can choose from 3 different Datomic libraries that will support the following database systems:

Library Db system
datomic-free Peer (free)
datomic-pro Peer (pro), Peer Server
dev-local Dev-local/Cloud

Each of the 3 libraries resolve differently:

datomic-free

  .settings(
    resolvers ++= Seq(
      Resolver.sonatypeRepo("releases"),
      "clojars" at "https://clojars.org/repo"
    ),
    libraryDependencies ++= Seq(
      "org.scalamolecule" %% "molecule" % "1.1.0",
      "com.datomic" % "datomic-free" % "0.9.5697"
    )
  )

datomic-pro

The Starter/pro version of Datomic requires a license so we need to provide a username and password to download the library. We do this by saving those in a secret ~/.sbt/.credentials file:

realm=Datomic Maven Repo
host=my.datomic.com
id=my.datomic.com
user=<your-username>
pass=<your-password>

And then we can resolve the dependencies by giving sbt access to our credentials file:

  .settings(
    resolvers ++= Seq(
      Resolver.sonatypeRepo("releases"),
      "clojars" at "https://clojars.org/repo",
      "my.datomic.com" at "https://my.datomic.com/repo"
    ),
    credentials += Credentials(Path.userHome / ".sbt" / ".credentials"),
    libraryDependencies ++= Seq(
      "org.scalamolecule" %% "molecule" % "1.1.0",
      "com.datomic" % "datomic-pro" % "1.0.6344"
    )
  )

dev-local

The dev-local library is part of Cognitect dev-tools that needs to be downloaded first. After downloading, you ./install the library in your local maven repository and let sbt know to look there too:

  .settings(
    resolvers ++= Seq(
      Resolver.sonatypeRepo("releases"),
      "clojars" at "https://clojars.org/repo",
      Resolver.mavenLocal
    ),

    libraryDependencies ++= Seq(
      "org.scalamolecule" %% "molecule" % "1.1.0",
      "com.datomic" % "dev-local" % "1.0.238"
    )
  )

Data Model paths

The MoleculePlugin needs to know where your Data Model(s) are.

You can have a single or several Data Model files in a project, each corresponding to a single database.

Data Model files should reside in directories named dataModel anywhere in your source code. Use the moleculeDataModelPaths sbt settings key of the MoleculePlugin to list paths to those directories.

Say you have a project app like the molecule-basic project project and a single Data Model file PersonDataModel.scala:

Then you simply add the following:

  .settings(
    moleculeDataModelPaths := Seq("app"),
    //...
  )

Multiple Data Models

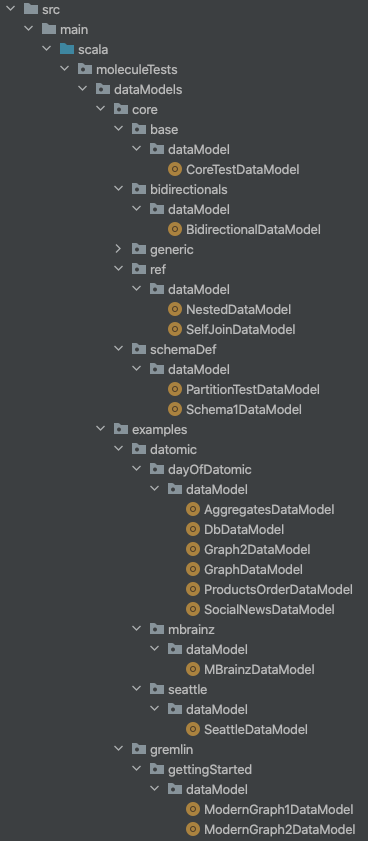

The Molecule project tests shows an example of having multiple Data Model files:

We list these paths like this in our build.sbt:

  .settings(
    moleculeDataModelPaths := Seq(
      "moleculeTests/dataModels/core/base",
      "moleculeTests/dataModels/core/bidirectionals",
      "moleculeTests/dataModels/core/ref",
      "moleculeTests/dataModels/core/schemaDef",

      "moleculeTests/dataModels/examples/datomic/dayOfDatomic",
      "moleculeTests/dataModels/examples/datomic/mbrainz",
      "moleculeTests/dataModels/examples/datomic/seattle",
      "moleculeTests/dataModels/examples/gremlin/gettingStarted"
    )
  )

MoleculePlugin options

Apart from the mandatory moleculeDataModelPaths setting key that we saw above, the MoleculePlugin has 3 more optional keys that you can set in your project build file. If the default value suits you, you don’t need to add the key.

moleculePluginActive

moleculePluginActive := false // (default)

Set this to true to have Molecule boilerplate code re-generated on each project compilation.

The default value is false to avoid re-generating boilerplate code when your Data Model hasn’t changed and you simply want to re-compile your project without affecting the existing generated boilerplate code.

A flexible way to control when re-generation should happen is to pass a property value when you want Molecule boilerplate code generated with your project compilation:

sbt clean compile -Dmolecule=true

and then set the key to this boolean value in your project build file:

moleculePluginActive := sys.props.get("molecule") == Some("true")

(You can call the property anything your like)

Then you can freely recompile your project without re-generating the Molecule boilerplate code:

sbt compile

moleculeMakeJars

Normally you want generated Molecule boilerplate code available as an immutable jar:

moleculeMakeJars := true // (default)

If you want to be able to modify or test things with the generated boilerplate code, you can set the key to false:

moleculeMakeJars := false

Then the jars are not created and the generated source code available in the src_managed directory in target.

moleculeSchemaConversions

Generate schema to lower/upper conversions. This is only need when importing databases from the Clojure world. Defaults to false.

moleculeSchemaConversions := false // (default)

moleculeAllIndexed

This is a Datomic-specific sbt settings key that tells whether schema attributes should all be indexed:

moleculeAllIndexed := true // (default)

If you set it to false, your settings in your Data Model determines which attributes are indexed.

Complete sbt example

Putting all the configuration together, we here have a minimal project build.sbt setup for a free Datomic Peer system on the jvm platform:

import sbt.Keys._

lazy val `molecule-basic` = project.in(file("."))
  .enablePlugins(MoleculePlugin)
  .settings(
    name := "molecule-datomic-peer-free",
    scalaVersion := "2.13.8",
    resolvers ++= Seq(
      Resolver.sonatypeRepo("releases"),
      "clojars" at "https://clojars.org/repo",
    )

    libraryDependencies ++= Seq(
      "org.scalamolecule" %% "molecule" % "1.1.0",
      "com.datomic" % "datomic-free" % "0.9.5697"
    ),

    // path to domain model directory
    moleculeDataModelPaths := Seq("app"),

    // Generate Molecule boilerplate code with `sbt clean compile -Dmolecule=true`
    moleculePluginActive := sys.props.get("molecule") == Some("true"),

    // Generate lover/upper schema conversion files (default is false)
    moleculeSchemaConversions := true,

    // Let IDE detect created jars in unmanaged lib directory
    exportJars := true
  )

We have added the last line exportJars := true also to let your IDE automatically detect and include the jars that the MoleculePlugin creates in the unmanaged lib directory of your project.

In the side menu you can see more examples of various project/database setups.

Compile Project

When you have copnfigured your sbt project, you can compile it to have Molecule boilerplate code generated:

sbt clean compile -Dmolecule=true

During project compilation, a series of operations are then performed:

  1. Boilerplate source code files based on your Data Model are generated.
  2. Generated source code is compiled.
  3. Sources and classes are packaged into two jars in the lib directory.
  4. Generated source code and compiled classes are removed.

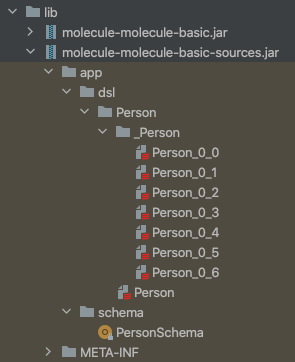

In our basic sample project these two jars are created:

dsl contains the generated Molecule boilerplate code for the defined Person Data Model and schema contains boilerplate code for transacting our Datomic schema. The name of each jar (one for compiled classes, one for source code) has “molecule-” prepended to your project name to avoid name clashes in lib.

Whenever you make changes to your Data Model, you can simply sbt compile -Dmolecule=true and have your Schema transaction boilerplate code re-generated with your latest changes.

Next

Get a database connection…
